Clean out tools

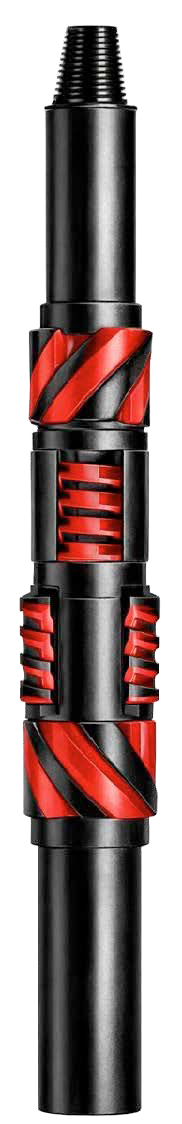

Rotating Scraper
A heavy-duty casing scraper designed to remove debris while protecting the casing during wellbore cleanout operations.
The B&R Tools & Service Non-Rotating Casing Scraper is engineered to thoroughly clean the inside diameter of casing by removing mud, rust, mill scale, cement, paraffin, and other debris that can interfere with completion or production operations. Its non-rotating blade assembly provides full 360-degree cleaning coverage while allowing the drill string to rotate independently, reducing unnecessary wear on the casing ID during extended cleanout operations.
Manufactured from premium heat-treated alloy steel, the Non-Rotating Casing Scraper is built for demanding downhole environments where durability and performance are essential. The rugged design utilizes self-centralizing stabilizers and a ball-bearing supported sleeve that keeps the scraper blades stationary while the mandrel rotates freely. For added versatility, the scraper can also be converted into a brush-style cleanout tool using optional stainless steel brush blades, making it suitable for a wide range of drilling, completion, and well maintenance applications.
Engineered for Complete 360° Casing Cleaning
The Non-Rotating Casing Scraper is designed to deliver maximum cleaning efficiency while minimizing casing wear, making it an ideal solution for drilling, completion, and intervention operations.
Key Features
- Non-rotating blade assembly provides complete 360° casing coverage
- Self-centralizing design with dual spiral stabilizers
- Mandrel rotates independently on heavy-duty ball bearings
- Removes mud, cement, mill scale, rust, paraffin, and other debris
- Heavy-duty heat-treated alloy steel construction
- Convertible to a brush-style cleanout tool with optional stainless steel brush blades
- Rugged bolt-free exterior minimizes snag points and improves durability
- Suitable for drilling, completion, workover, and remediation operations
- Available in a wide range of tubing and casing sizes
- Designed to protect casing while maintaining aggressive cleaning performance
